| Pixel Configuration |
SMD1010 |
| Pixel pitch (mm) |
2.5 |
| Pixel density (dots/m2) |
160000 |
| Module resolution (WxH) |
80x120 |
| Module size (mm) |
200(W) x 300(H) |
| Module weight (kg) |
0.4 |
| Maximum power consumption of the module (W) |
40 |
| Module of cabinet (WxH) |
2x1 |
| Cabinet resolution (WxH) |
160x120 |

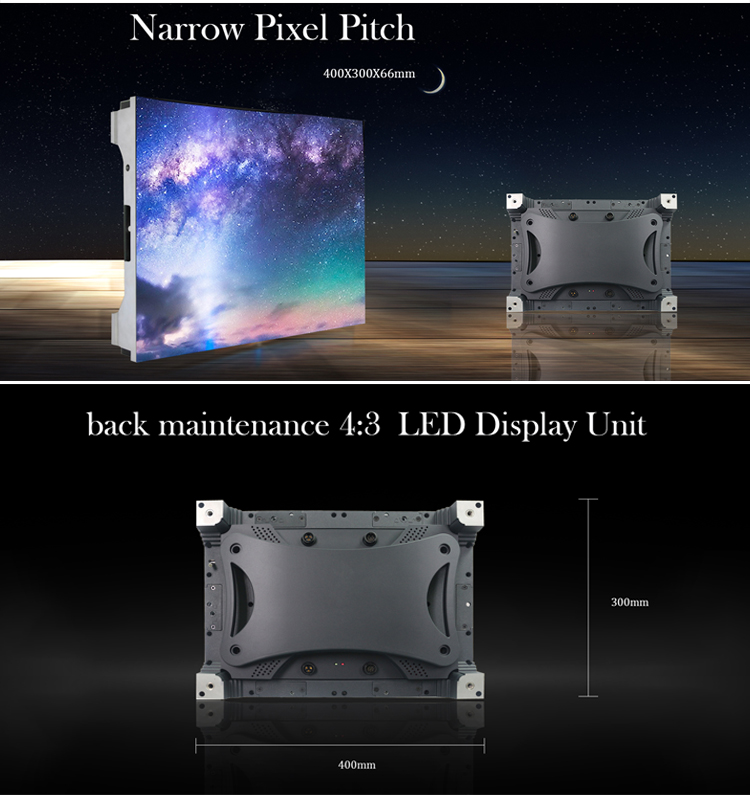

| Cabinet size (mm) |
400(W) x 300(H) x 66 (D) |
| Cabinet area (m2) |
0.12 |
| Cabinet weight (kg) |
4.6 |
| Cabinet level up degree (mm) |
≤0.2 |
| Maintenance mode |
Front/Rear |
| Cabinet raw material |
Die-casting aluminum |
| Single-point brightness correction |
YES |
| Single - point color correction |
YES |
| White Balance Brightness (nits) |
≥800(6500K) |
| Color Temperature (K) |
3200—9300 (adjustable) |
| Viewing Angle (Horizontal / Vertical) |
160/160 |
| Deviation of center distance of light - emitting |
<3% |
| Brightness / chromaticity uniformity |
≥97% |
| Contrast |
4000:01:00 |
| Peak power consumption (W / m2) |
800 |
| Average power consumption (W / m2) |
250 |
| Power supply requirements |
AC90~264V, frequency 47-63 (Hz) |
| Frame rate (Hz) |
50&60 |
| Drive mode |
Constant drive, 1/30 scan |
| Grayscale level |
65536 |
| Refresh rate (Hz) |
≥3840 |
| Number of color processing bits |
16bit |
| Video playback capabilities |
2KHD, 4KHD |
| Operating temperature / humidity range (℃ / RH) |
-20 – 60 / 10%-85%RH |
| Storage temperature / humidity range (℃ / RH) |
-20 – 60 / 10%-85%RH |
| Applicable standards |
CCC, TUV-CE, ETL |
